CD Series
CD Series
Buy now
Specifications
Specifications
Downloads
Downloads
8"
8"
6.5"
6.5"
5.25"
5.25"

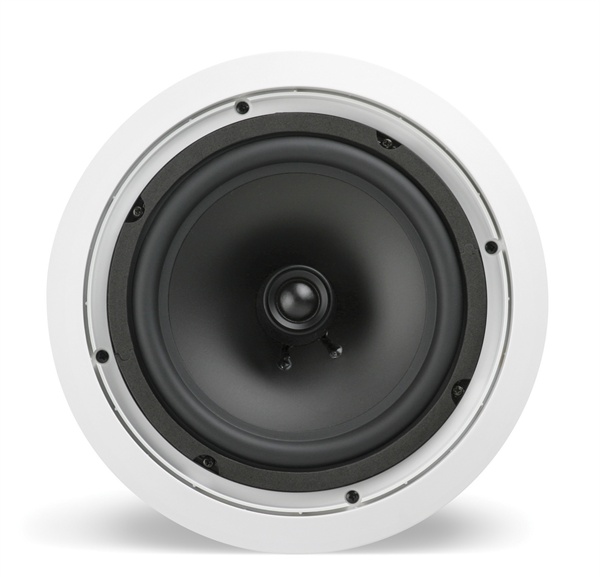

Model:

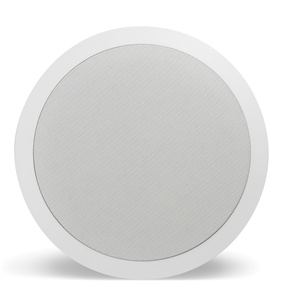

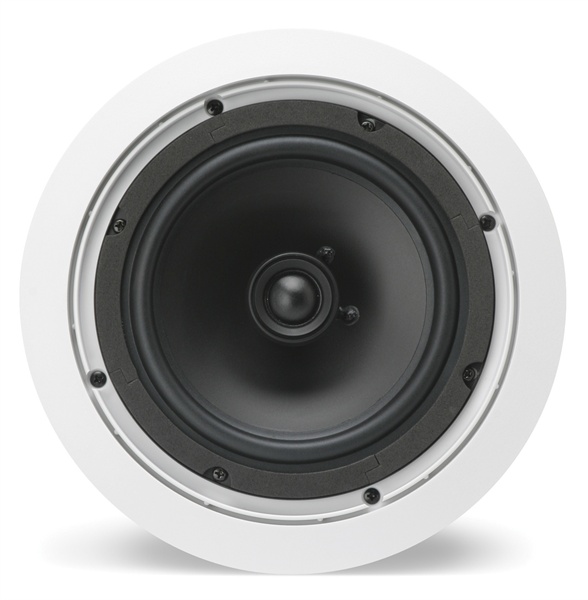

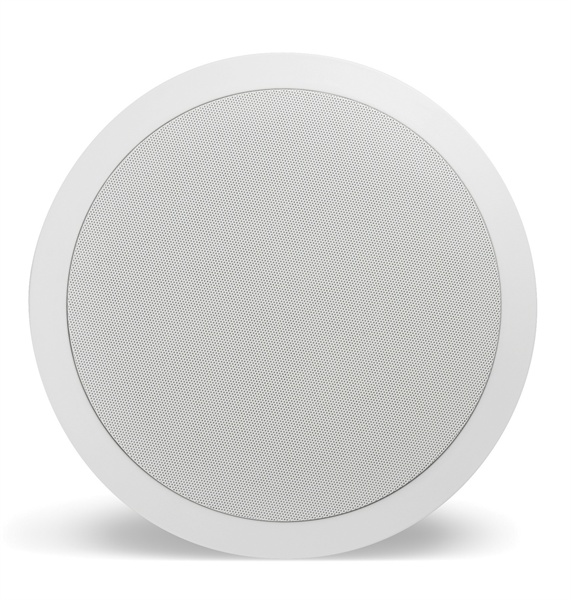

CD820C
Description
In-Ceiling
RMS Power (Watts)
75
Peak Power (Watts)
150
Impedance
8Ω
Frequency Response +/- 3dB
35Hz - 20kHz
Sensitivity (2.83V/1m)
85dB
Woofer
Single 8"
Cone Material
Polypropylene
Tweeter
20mm Cloth Dome
Cut Out Diameter
9 7/16"
Mounting Depth
3 7/16"
Loading…
Model:

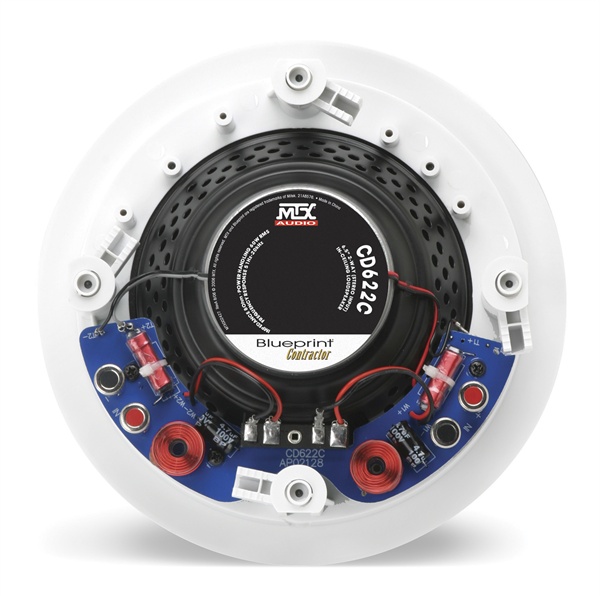

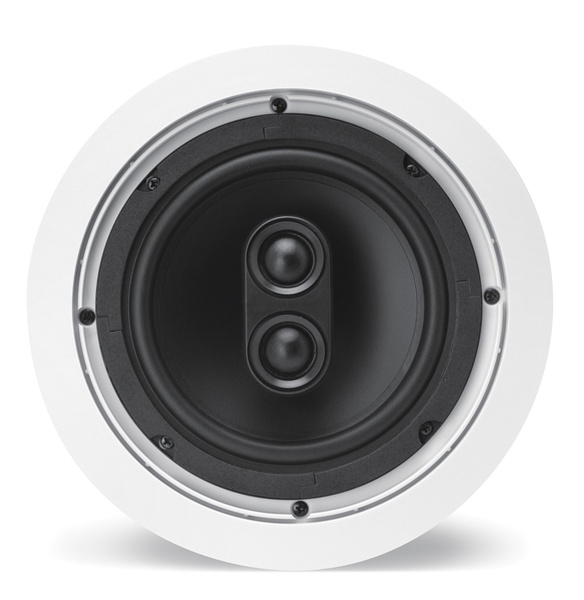

CD622C
CD620C

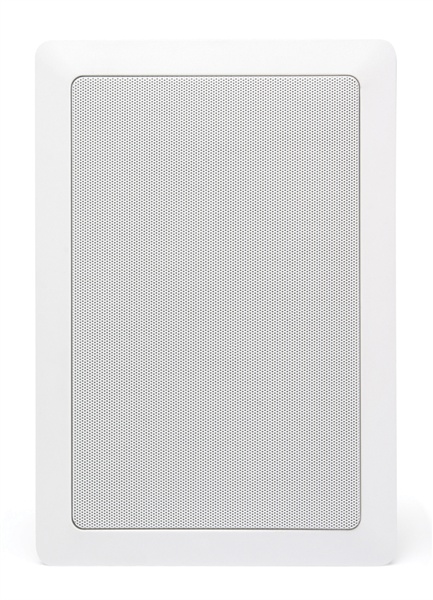

CD620W
Description
In-Ceiling
In-Ceiling
In-Wall
RMS Power (Watts)
60
60
60
Peak Power (Watts)
120
120
120
Impedance
8Ω
8Ω
8Ω
Frequency Response +/- 3dB
46Hz - 20kHz
55Hz - 20kHz
55Hz - 20kHz
Sensitivity (2.83V/1m)
83dB
86dB
85dB
Woofer
Single 6.5"
Single 6.5"
Single 6.5"
Cone Material
Polypropylene
Polypropylene
Polypropylene
Tweeter
Dual 20mm Cloth Dome
Pivoting 20mm Cloth Dome
Pivoting 20mm Cloth Dome
Cut Out Diameter
7 11/16"
7 11/16"
10 7/8" x 7 7/16"
Mounting Depth
3 1/8"
3 1/8"
3 1/8"
Loading…
Model:

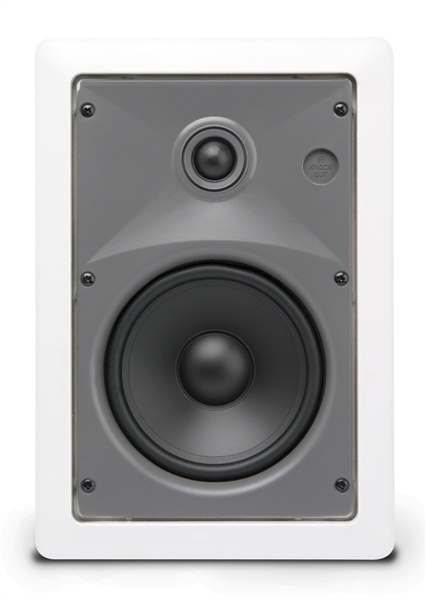

CD520W

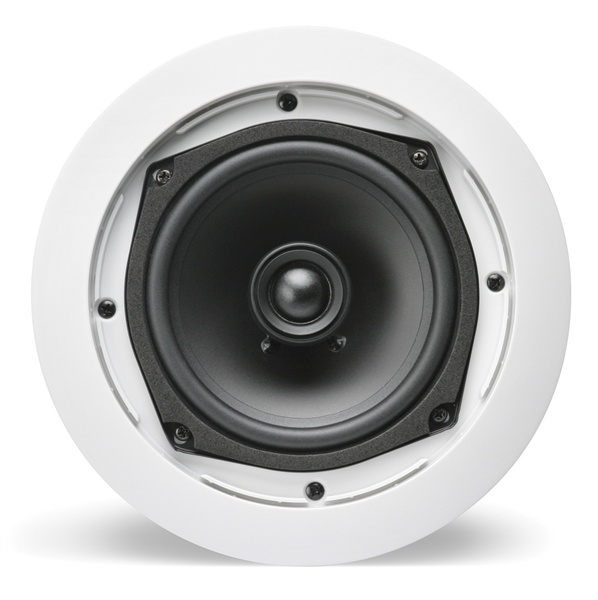

CD520C
Description
In-Wall
In-Ceiling
RMS Power (Watts)
50
50
Peak Power (Watts)
100
100
Impedance
8Ω
8Ω
Frequency Response +/- 3dB
50Hz - 20kHz
55Hz - 20kHz
Sensitivity (2.83V/1m)
85dB
85dB
Woofer
Single 5.25"
Single 5.25"
Cone Material
Polypropylene
Polypropylene
Tweeter
Pivoting 20mm Cloth Dome
Pivoting 20mm Cloth Dome
Cut Out Diameter
9 11/16" x 6 1/4"
6 9/16"
Mounting Depth
2 3/4"
2 3/4"
Loading…
Rough In Kit and Hole Provider Chart
