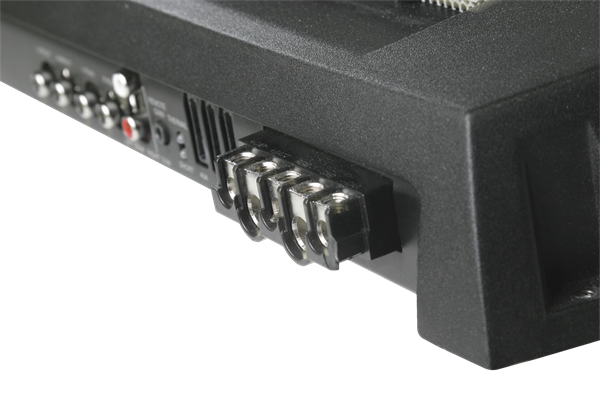

What makes a Thunder amplifier a Thunder Super Amplifier are the extreme amounts of output power - up to a hair raising 9000 Watts max power, their extensive list of controls and features and the ability to run flawlessly stable at 1 Ohm to power the most complex configurations you can imagine. Most Thunder TA Super Amplifiers even accept direct 1/0 gauge power and ground and they all have direct capacitor inputs on the block as well. Each Super Amplifier was specifically designed to incorporate the latest technologies including XTC thermal management from the renowned Xtant Technologies thermal, our amazing Prizm EFX™, Smart Engage™ OEM/aftermarket integration and terminals designed by another legend, StreetWires.

Mono-Block

2-Channel

4-Channel

Model:

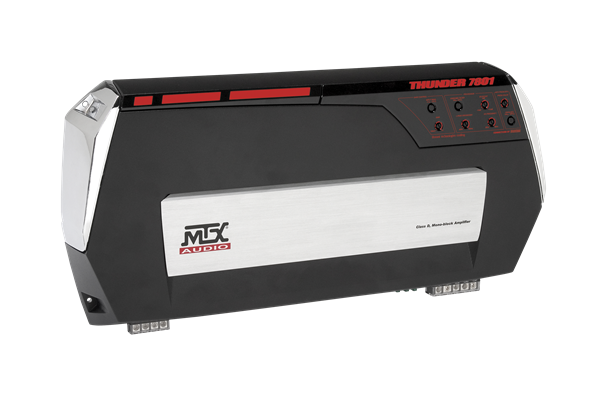

TA7801

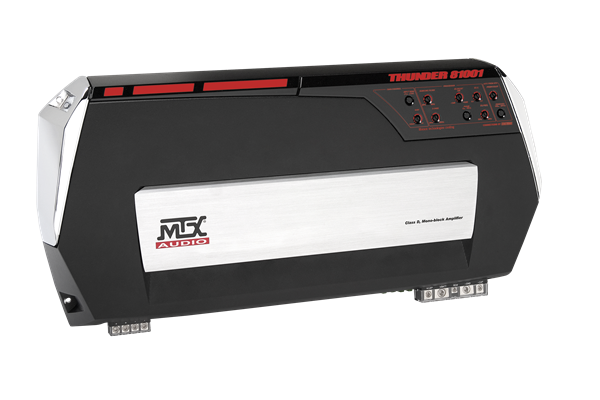

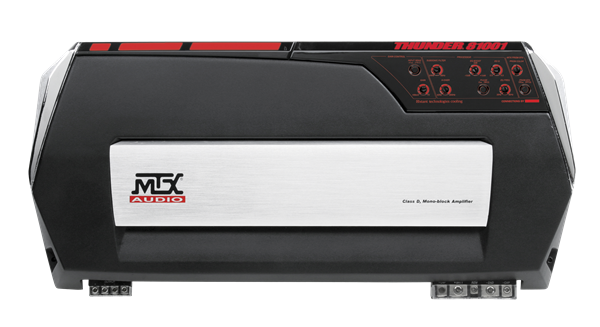

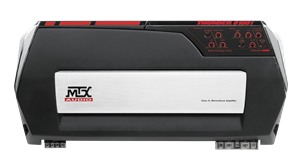

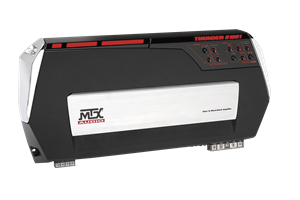

TA81001

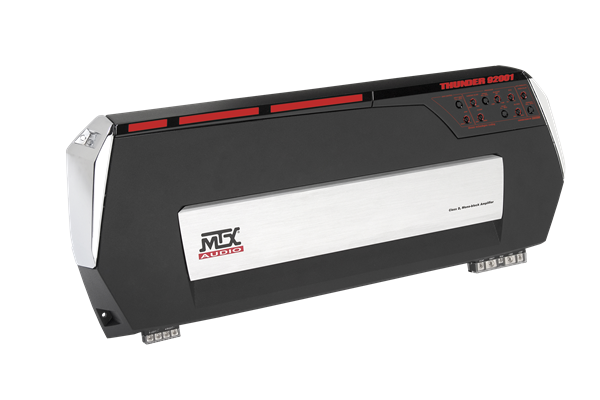

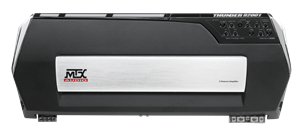

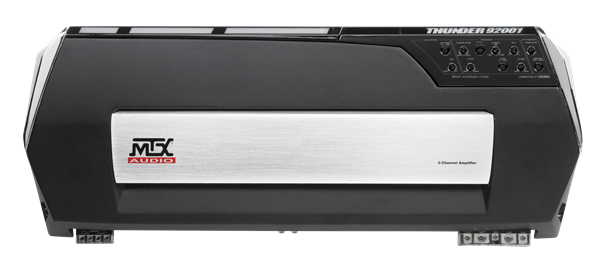

TA92001

4Ω RMS Power Output	400W x 1 Channel	500W x 1 Channel	1000W x 1 Channel
Topology	Class D	Class D	Class D
Equalization	Quasi Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz	Quasi Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz	Quasi Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz
1Ω RMS Power Output	1200W x 1 Channel	1500W x 1 Channel	3000W x 1 Channel
Height	9 5/8" (24.45 cm)	9 5/8" (24.45 cm)	9 5/8" (24.45 cm)
Width	20 11/16" (52.55 cm)	20 11/16" (52.55 cm)	24 11/16" (62.71 cm)
Depth	2 1/2" (6.35 cm)	2 1/2" (6.35 cm)	2 1/2" (6.35 cm)
2Ω RMS Power Output	800W x 1 Channel	1000W x 1 Channel	2000W x 1 Channel
Signal to Noise Ratio (1W)			65dB
Frequency Response (-3dB)	20Hz-200Hz	20Hz-200Hz	20Hz-200Hz
Maximum Sensitivity	100mV	100mV	100mV
Crossover	Low @ 40Hz to 200Hz, 24dB/Oct	Low @ 40Hz to 200Hz, 24dB/Oct	Low @ 40Hz to 200Hz, 24dB/Oct
Subsonic Filter	30Hz,12dB/Oct, Defeat	30Hz,12dB/Oct, Defeat	20Hz - 50Hz, 12dB
Maximum Input Signal			10V

Model:

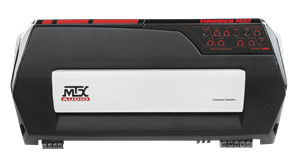

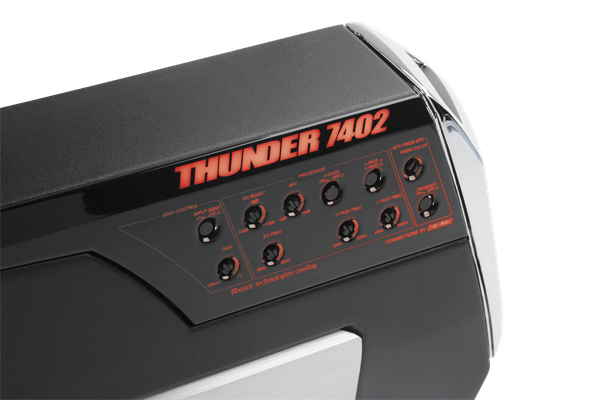

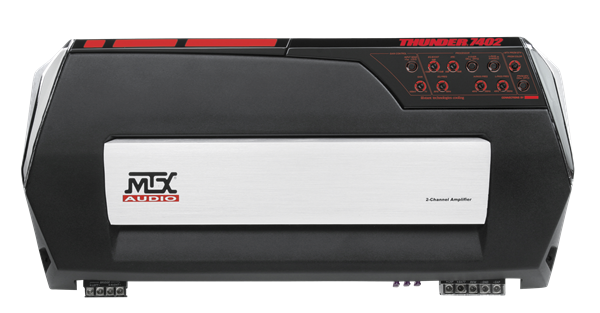

TA7402

4Ω RMS Power Output	100W x 2 Channels
Topology	Class A/B
Height	9 5/8" (24.45 cm)
Width	20 11/16" (52.55 cm)
Depth	2 1/2" (6.35 cm)
2Ω RMS Power Output	200W x 2 Channels
Signal to Noise Ratio (1W)	75dB
Frequency Response (-3dB)	20Hz-20kHz
Maximum Sensitivity	100mV
Crossover	Hi, 12dB / Low, 24dB Mono @ 40Hz-350Hz, Defeat
Equalization	Quasi Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz
Maximum Input Signal	10V
